Software Capabilities

  • Plug & Play
  • Portable, Simple-to-Use Interface
  • Live 3D Digital Dashboard and Charts with NEW Enhanced Contrast Feature
  • Engine System Data
  • Auto Self Test
  • Engine History Data
  • Real Time Data
  • Freeze Frames – Engine Faults, Tachometer, and Output Load Tests
  • Integrated Help Menu
  • M.E.D.S. Check Report – Customized for Each Customer
  • French & Spanish Versions Available

*Please note, available tests & capabilities depend upon the engine type.



Features

  • Hands free information
  • Engine configuration data
  • Displays active & inactive faults
  • Clear faults with a single click
  • Displays run history by RPM range and # of hours
  • MEDS Help built in
  • Set / Monitor Break In Period
  • Display engine functions during a fault (i.e. an engine stall)
  • Drill down to the engine failure (i.e. injector)
  • Individually test components (i.e. one injector at a time)



MEDS_Logo

Supported Engines



Shown below are the engines supported by the Special Edition Mercury Dealer Version M.E.D.S. Package, Part Number 531-0200T4.
Click Here to download and print this Engine Applications Guide.

 MERCURY / MERCRUISER
 Purchased Alone:  531-0118M                                                                      As an Add-on/Upgrade:  531-0119M
 Mercury Optimax Years
 Optimax V6 135, 150, 175, 200, 225, 250, 2.5L, 3.0L                                             1997 – 18
 Optimax I3 1.5L, 75, 90, 115 HP 2002 – 18
 Optimax V6 EFI and Sport Jet 2002 – 16
 2.5L EFI, 150, 175, 200, 225 HP  (Using 824003 Series ECU) 1994 – 01
2.5L EFI, 150, 175, 200.HP (Using 555 Series ECU) 2002 – 06
 Mercury Verado Years
 Verado I-4 135, 150, 175, 200 HP 2001 – 19
 Verado I-6, 200, 225, 250, 275, 300, 350 HP 2001 – 19
Mercury 4-Stroke EFI (pre-G3) Years
 40, 50, 60, 75, 90, 115 HP 2002 – 14
 Mercruiser (w/ 555 Controller & w/o Catalytic Converters) Years
 4.3L MPI, 5.0L MPI, 350 Mag MPI, MX 6.2L MPI, Black Scorpion 2002 – 14
 496 MAG, 496 HO MAG, 8.1L, 8.1L HO 2001 – 10
 Mercruiser Racing Years
 1075 Sci, 414 EFI, 600 Sci, 8.1L SHO 2001 – 10
 Mercury Racing Years
 225X, 250XS, 300X, 300XS 2001 – 10
 2.5L (250) EFI 1998 – 05
 YAMAHA
 Purchased Alone: 531-0118Y                                                                          As an Add-on/Upgrade: 531-0119Y
 Yamaha Outboards Years
 4 Stroke EFI: F50, F60, F75, F90, F115, F150, F200, F225, F250, F300, F350
2000 – 12
 2 Stroke HDPI: Z150, LZ150, VZ150, VZ175, Z200, LZ200, VZ200, VZ225, VZ250
2000 – 14
 SHO 4 Stroke EFI: VF200, VF225, VF250
2010 – 19
 Mercury Manufactured by Yamaha (4-Stroke EFI) Years
 30, 40, 50, 75 HP, 90 HP EFI, 115 HP EFI 2001 – 06
 Yamaha Snowmobiles Years
 Apex GT, Mountain, ER, RTX, GTX, MTX, LTX 2006 – 09
 Attak GT, Base 2006 – 07
 Nytro Base, MTX, RTX, RTX-SE, FX Series 2008 – 09
 Phazer Base, GT, Mountain Lite, FX, RTX, MTX, Venture Lite, RX Venture GT 2007 – 09
 Yamaha Personal Watercraft (PWC) Years
 FX:  All Models 2002 – 09
 GP 1300 2004 – 08
 VX All Models, VX Deluxe 2004 – 08
 FZR, XLT1200, XA1204 2009
 GM MEFI Versions 1-4
 Purchased Alone: 531-0118I4                                                                         As an Add-on/Upgrade: 531-0119I4
 MEFI 1-4 Equipped Years
 Crusader / Pleasurecraft Marine                                                                     1992 – 06
 Flagship Marine 1992 – 07
 GM RamJet 350 1992 – Up
 Indmar 1992 – 07
 Kodiak Marine 1992 – 08
 Marine Power 1992 – 08
 Mercury / Mercruiser 1992 – 00
 Mercury / Mercruiser Racing  HP500 1992 – 10
 Panther Air Boats 1992 – Up
 TurnKey Engines 2001 – 07
 Volvo Penta Gas 1992 – 05



          view-meds-check-report





Portable, simple-to-use interface

Works on Microsoft PC Laptops, Windows Tablets and Microsoft’s Surface Tablets.

With M.E.D.S. you are not bound to a small, expensive to replace, handheld device. Our software works on any PC laptop running Windows 10 Operating System. Recommended Computer System Requirements are below.

  • Windows 10 Operating System / Intel I5 Dual Core processor @2.5 Ghz or greaterRecommended I7 Quad Core @ 2.5 Ghz or greater / USB 2.0 or USB 3.0 Port / 10 GByte  of Free Hard Disk Space,  Recommended 50 GBytes or greater / 2 GByte  of RAM,  Recommended 6 GBytes or greater / Tablets running Windows 10 with a USB port (*Note: Windows 8 RT will not work with M.E.D.S.). Processor must be I5 Dual Core @ 2.5 Ghz or better / Screen Resolution of 1360×768 or higher

For best results, the Windows display DPI resolution should be configured at standard 96 DPI or higher. Some controls may not be visible or look distorted at nonstandard DPI settings.

Navigate anywhere with a single click.

Our simple to navigate menu allows you to get the information you need quickly. Combine that with our large standard screen size of 1360 x 768 px. and you have a software that allows you to read the engine and diagnose any issues quickly and easily.

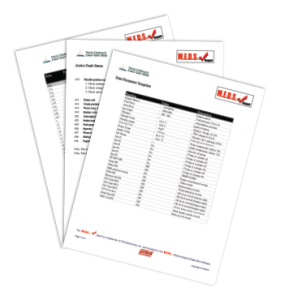

M.E.D.S. Check Report makes you money.

Customizable & comprehensive engine history report. The M.E.D.S. Check Report allows you to run a full diagnostic test on your customer’s engine and present them with a comprehensive report detailing everything from the number of hours on their engine to the last time they did an oil change. You can upload your company logo to M.E.D.S. and have it appear in the upper left hand corner of your M.E.D.S. Check Report. Learn More.

Do you have questions about M.E.D.S?

CDI’s Technical Support Team is the best in the industry and are only a phone call away. Dial toll-free 1.800.467.3371 and one of our friendly Support Staff will be happy to help you get your question answered.
